VAULT 2 V1.1 | 23.4 L | MINI-ITX PC CASE
EMPOWERING MINI-ITX SETUPS WITH FULL-SIZED COMPONENT SUPPORT AND REAL WOODEN PANELS
SHOP NOW
MATCH THE NEEDS OF FUTURE PC COMPONENTS
With increasing PC component sizes and the need to dissipate heat more efficiently, SFF system builders must rethink how they build their future systems. Vault 2’s design is optimized for growing GPU sizes and rising CPU cooling requirements.
SMALL 23.4 L FOOTPRINT, HUGE COOLING POTENTIAL
Vault 2’s small and innovative case layout is optimized with liquid cooling in mind. Getting the most out of the new generation of CPUs and GPUs requires massive cooling solutions such as 360mm AIOs, custom loops, and bulky air coolers.
SAY GOODBYE TO GPU SAG
Vertical GPU placement and reinforced case design provide a permanent fix to sagging GPUs.

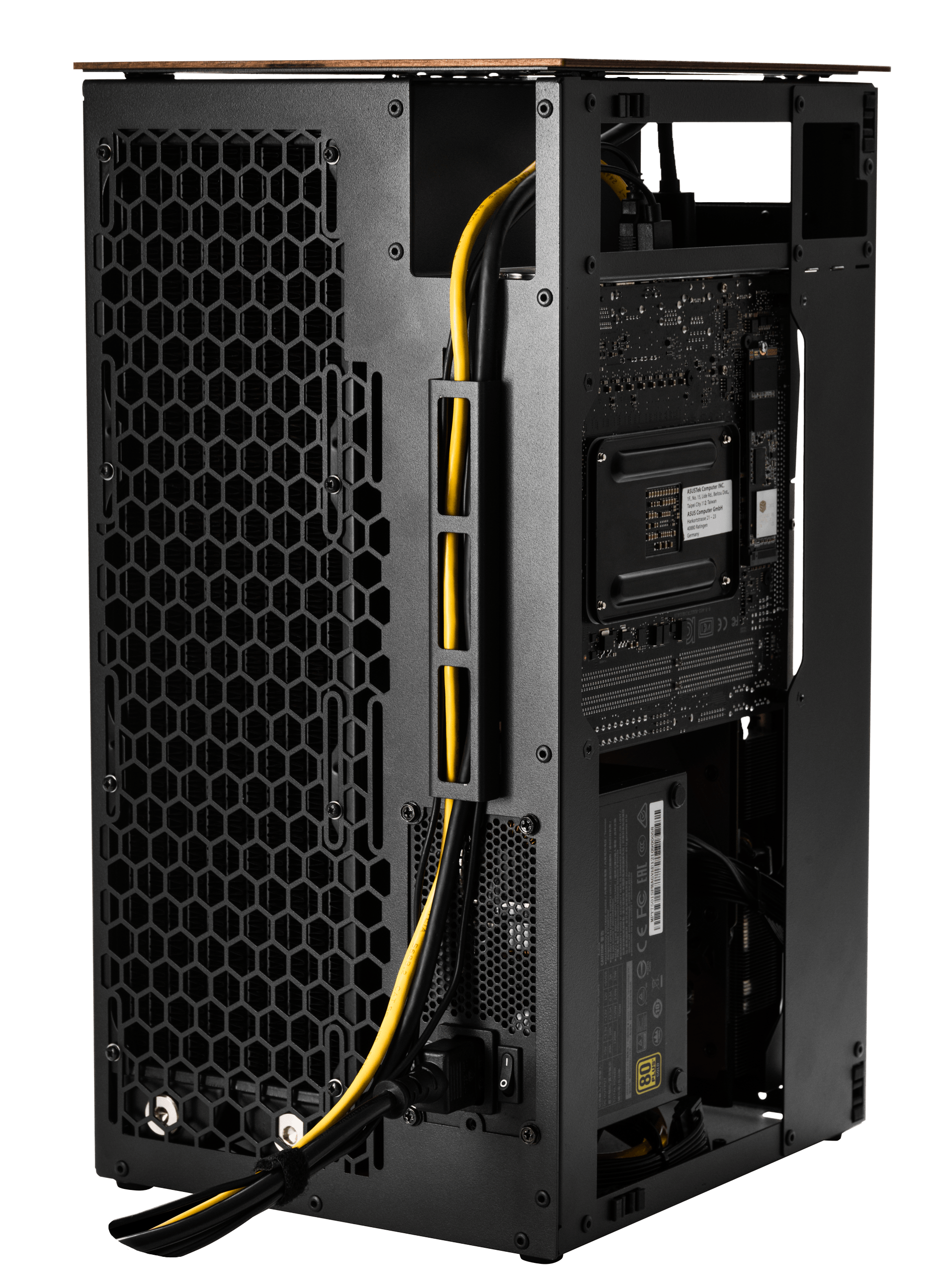

CHOOSE YOUR CABLE ROUTING
Modular design allows you to route your peripheral cables from the top or bottom of the case. The case includes a metallic cable routing panel that helps route cables neatly.

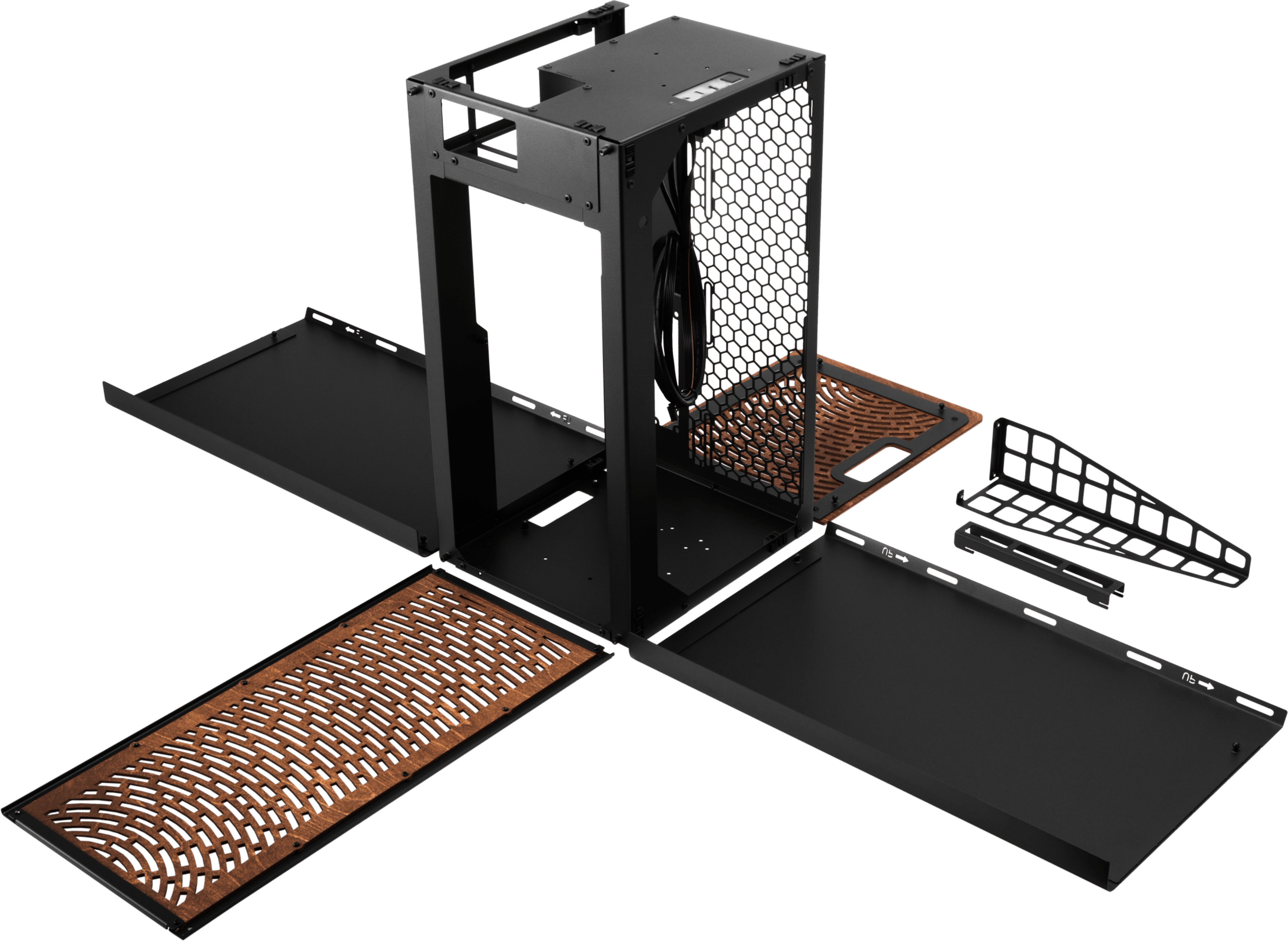

TOOLLESS ACCESS TO COMPONENTS AND EASY MAINTENANCE
All side panels are easily removable without needing tools, making component installation and maintenance easy.
UNIQUE AIRFLOW LAYOUT
Vault 2 keeps your hot components cool by utilizing an effective negative air pressure layout. The small case size and large front panel perforation enable a fast airflow rate. GPU gets cooled with unrestricted air intake, and 3 x 120 mm / 2 x 140 mm rear fans exhaust all hot air rapidly.

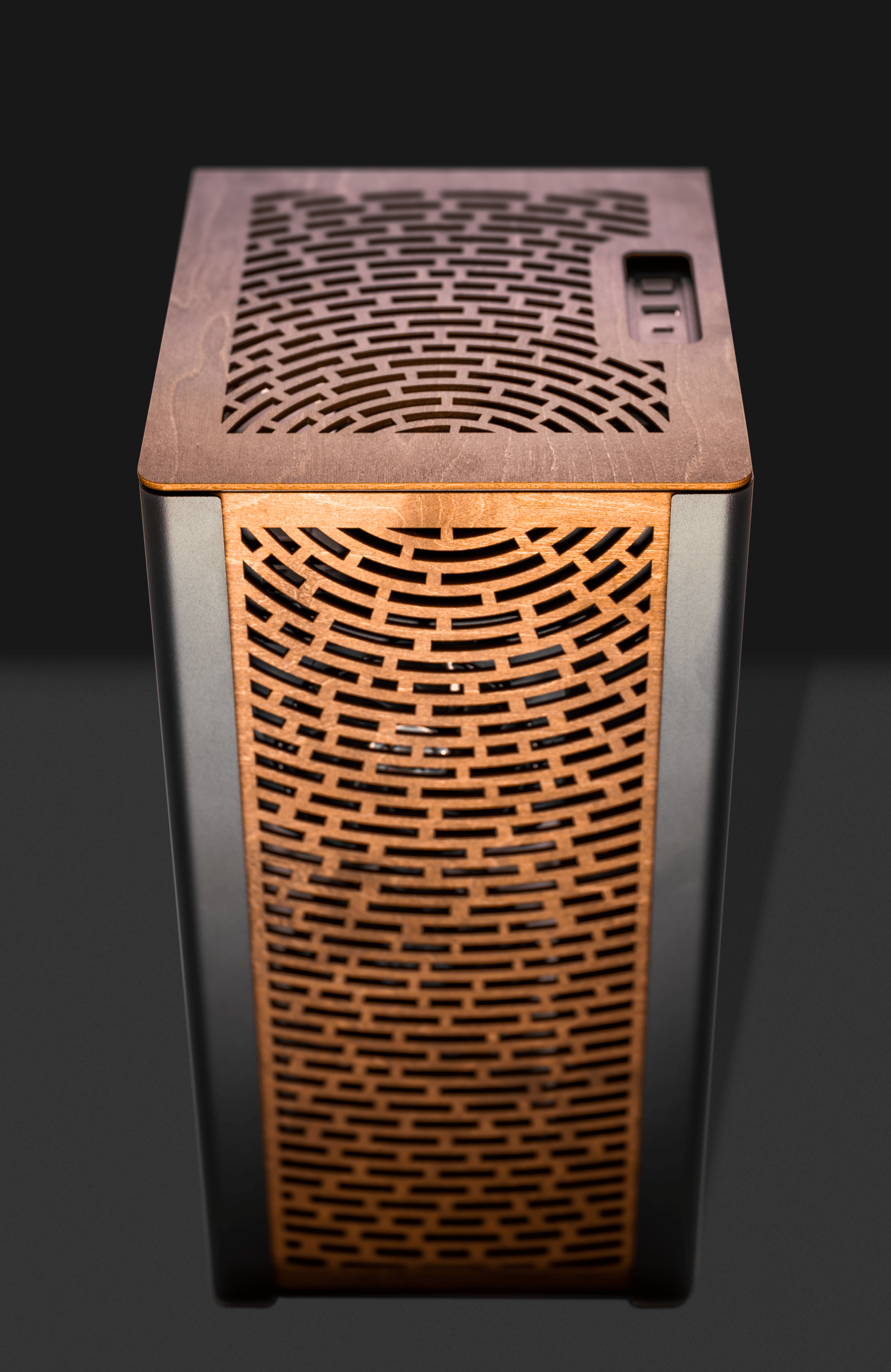

ALL OUR WOODEN PANELS ARE MADE FROM SUSTAINABLY GROWN FINNISH BIRCH

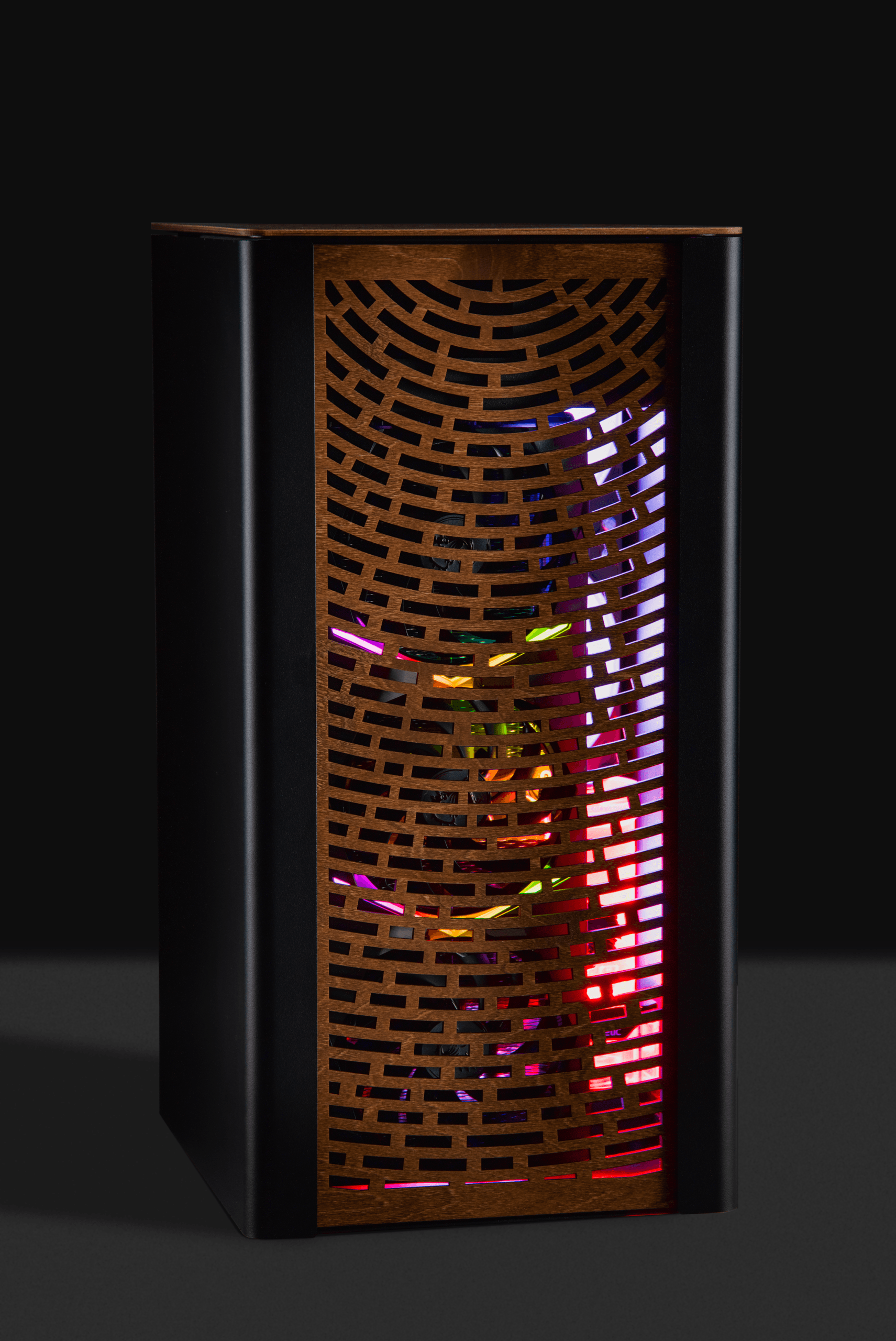

NATURE-INSPIRED LOOK, ROBUST STRUCTURE, EASY TO BUILD IN
Spacious interior design and carefully planned component layout make installing large components easy. The case exterior has sleek, nature-inspired aesthetics with real wood panels making the case look like a piece of art on your desktop.
| Dimensions | Width x Depth x Height | 220 x 256 x 429 mm (23.40 liters) | |
| Motherboard support | Mini-ITX | ||
| Expansion slots | 3 | ||
| Legacy drive support | 1 x 2.5″ drive (without HDD-kit) | (With HDD-kit) 3 x 2.5″ drives or up to 2 x 3.5″ drives (depending on 3.5″ drive height) | |
| Liquid cooling support | AIO | 1 x 360/280/240/140/120 mm radiator | |
| Custom radiators | 1 x 120/240/360 mm radiator (max length 413 mm / max width 125 mm) | ||
| 1 x 140/280 mm radiator (max length 344 mm / max width 145 mm) | |||
| Pump | Pump hole pattern 50 x 50 mm | ||
| Fan support | Rear | 3 x 120 mm / 2 x 140 mm | |
| Component support | GPU | Up to 3.0 slots (65 mm) wide with dust filter (max length 350 mm) Up to 3.5 slots (72 mm) wide without dust filter (max length 340 mm) | |
| CPU cooler | Max height 195 mm | ||
| Memory | Max height 70 mm when using 120/240/360 mm radiators Max height 55 mm when using 140/280 mm radiators | ||
| Power supply | SFX, SFX-L | ||
| Weight without package | Kilograms | 5.0 kg | |
| Weight with package | Kilograms | 6.0 kg | |
| Package dimensions | Width x Depth x Height | 260 x 296 x 469 mm | |
| Front I/O panel | 1 x USB 3.1 Type-E 10Gbps to Type-C, 1 x USB 3.0, 1 x Combo Audio, Power switch with all-in-one pin connector | ||
| Included accessories | Screw kit, cable ties and metal cable management panel HDD tray kit and dust filter kit are sold as optional accessory |
BUILD GUIDE V1.0
